Raw Material Pre-processing Equipment

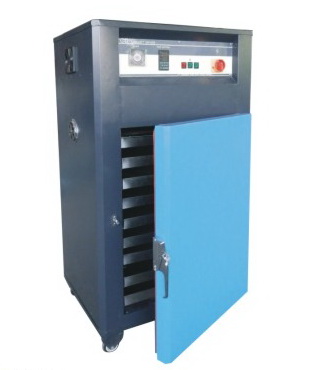

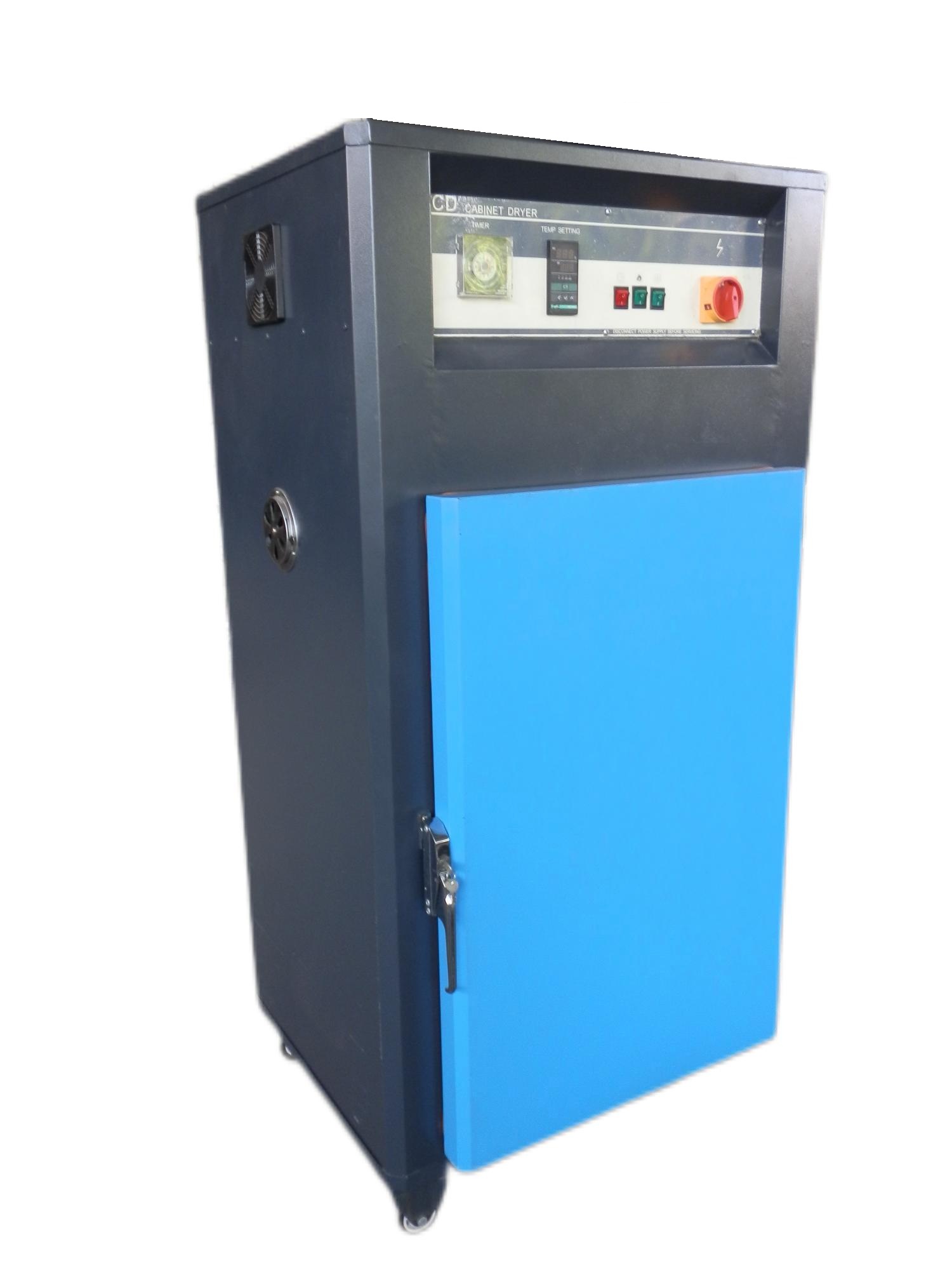

Cabinet Dryer

FEATURES
Applicable for drying all kinds of plastic materials, particularly for materials with high demand for temperature in small quantity and of different colors; also suitable for other preheating or drying purposes, e.g. edible, medical, electronic and electroplating products.
P.I.D. control adopted to precisely control drying temperature.
Temperature and timer control in one unit for easy parameter setting.
Premium heat insulating material and sealed structure can save energy.
Adjustable air inlet.
Installed with motor overload protector and phase controller.
INQUIRY

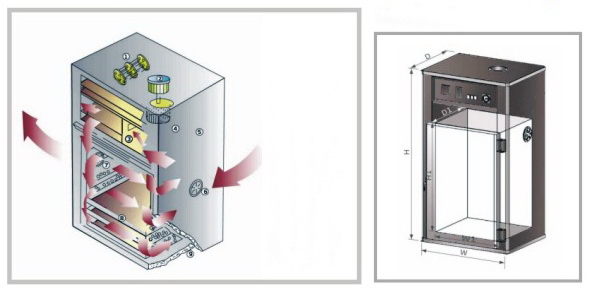

WORKNIG PRINCIPLE

Place material on the movable trays and start the machine. After air is blown from the air inlet to electric heater elements, hot air evenly goes through and drys the material. Consequently, moisture will be expelled from the moisture outlet and then material is dried through the repeated process.

Specification

Model	Heater（kw)	Blower（kw)	Max Temp.（℃）	Trays	Capacity（kg)	Dimensions（cm) H×L×W	Inside Dimension H×L×W （cm)	Weight（kg)
HO-5	4	0.37	200	5	50	120×80×61	66×60×55	150
HO-9	4.5	0.37	200	9	90	144×80×61	90×60×55	180
HO-20	9	1.5	200	20	200	170×121×86	100×99×80	415
HO-20L	18	1.5	200	20	450	187×180×106	120×160×100	550
HO-5-HT	4	0.37	250	5	50	138×86×73	66×60×55	200
HO-9-HT	4.5	0.37	250	9	90	164×92×73	90×60×55	252
HO-20-HT	9	1.5	250	20	200	189×131×103	100×99×80	587
HO-20L-HT	18	1.5	250	20	450	202×190×123	120×160×100	778
