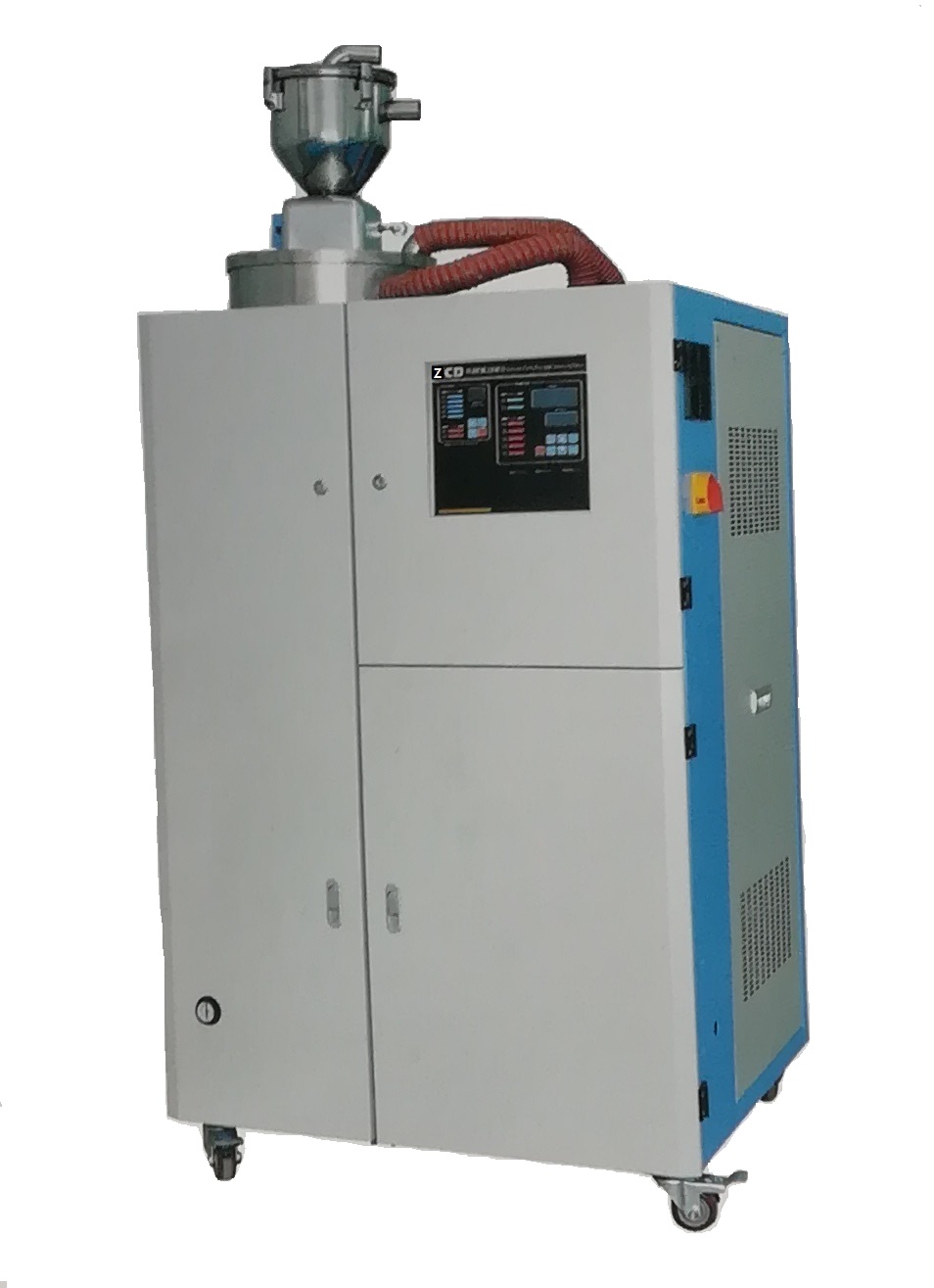

Specifications (Fully-integral Design)
Model ZCD- | 20U/30H (-OP) | 40U/30H (-OP) |
40U/50H | 80U/50H (-OP) | 120U/80H (-OP) |
160U/80H |
160U/120H |
230U/120H |
300U/200H |
450U/200H |
Drying System | ||||||||||
Dying Heater Power (kW) |
3 |
3 |
3.9 |
3.9 |
6 |
6 |
6 |
6 |
12 |
12 |
Dying Blower Power (kW, 50/60Hz) |
0.2 |
0.2 |
0.4 |
0.4 |
0.75 |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
Hopper Capacity (L) |
20 |
40 |
40 |
80 |
120 |
160 |
160 |
230 |
300 |
450 |
Dehumidifying System | ||||||||||
Regenerating Heater Power (kW) |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
4 |
4 |
Regenerating Blower Power (kW, 50/60Hz) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.4 |
0.4 |
Dehumidifying Air quantity (m3/hr, 50/60Hz) |
30 |
30 |
50 |
50 |
80 |
80 |
120 |
120 |
200 |
200 |
Feeding System | ||||||||||
Feeding Blower Power (kW, 50/60Hz) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
Dia. of Material Pipe (inch) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
SHR-U-E Hopper (L) |
3(3*) |
3(3*) |
3 |
6(3*) |
6(3*) |
6 |
6 |
12 |
12 |
12 |
SHR-U Hopper (L) |
3 |
3 |
3 |
6 |
6 |
6 |
6 |
12 |
12 |
12 |
Dimensions | ||||||||||
H(mm) |
1490(1400) |
1550(1500) |
1550 |
1800(1670) |
1990(1710) |
1860 |
1860 |
2070 |
2160 |
2570 |
W(mm) |
1000(1050) |
1040(1050) |
1040 |
1105(1240) |
1105(1240) |
1190 |
1190 |
1190 |
1460 |
1460 |
D(mm) |
875(900) |
875(900) |
875 |
875(1000) |
875(1000) |
875 |
875 |
875 |
1020 |
1020 |
Weight (kg) |
280(235) |
295(280) |
297 |
325(330) |
340(385) |
385 |
505 |
515 |
565 |
595 |
Specifications (Semi-integral Design)
Model ZCD- | 600U/400H | 750U/400H | 900U/700H | 1200U/700H |
Drying System | ||||
Drying Heater Power (kW) |
18 |
18 |
24 |
24 |
Drying Blower Power (kW, 50/60Hz) |
3.75 / 4.5 |
3.75 / 4.5 |
5.5 / 6.3 |
5.5 / 6.3 |
Hopper Capacity (L) |
600 |
750 |
900 |
1200 |
Dehumidifying System | ||||
Regenerating Heater Power (kW) |
7.2 |
7.2 |
10 |
10 |
Regenerating Blower Power (kW, 50/60Hz) |
0.75 / 0.9 |
0.75 / 0.9 |
1.5 / 1.8 |
1.5 / 1.8 |
Dehumidifying Air quantity (m3/hr, 50/60Hz) |
400 / 450 |
400 / 450 |
700 / 780 |
700 / 780 |
Feeding System | ||||
Feeding Blower Power (kW) |
1.5 |
1.5 |
2.4 |
2.4 |
Dia. of Material Pipe (inch) |
1.5 |
1.5 |
2 |
2 |
SHR-U-E Hopper Receiver (L) |
12 |
12 |
24 |
24 |
SHR-U Hopper Receiver (L) |
12 |
12 |
24 |
24 |
Dimensions | ||||
H(mm) |
2380 |
2610 |
2640 |
3070 |
W(mm) |
1745 |
1745 |
2140 |
2140 |
D(mm) |
1255 |
1255 |
1380 |
1380 |
Weight (kg) |
640 |
690 |
850 |
900 |
