Raw Material Pre-processing Equipment

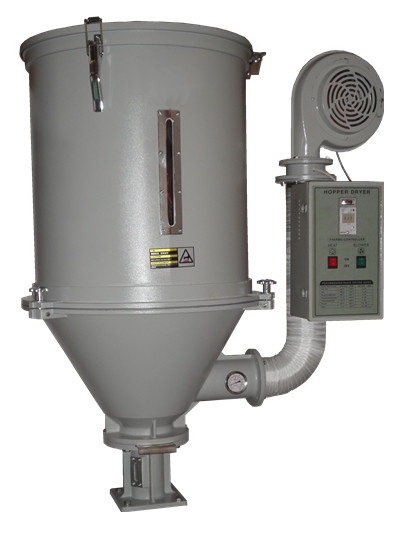

Hopper Dryer

FEATURES
Material contact parts are made of stainless steel.
Precise die cast aluminum housing with smooth surface and good heat preservation.
Adopting low noise blower, and the optional air filter ensures material purity.
Proportional deviation display thermostat controls temperature accurately.
Installed with glass for inspection.
Curved heating cylinder is designed to avoid powder jam and overheat.
Hopper is designed for easy opening, suitable for all robots.
INQUIRY

Model	HD-12	HD-25	HD-50	HD-75	HD-100	HD-150	HD-200	HD-300	HD-400	HD-600	HD-800	HD-1000
Capacity （kg)	12	25	50	75	100	150	200	300	400	600	800	1000
Heating（kw)	1.8	3.5	4.5	6.5	6.5	9	12	15	18	21	30	40
Blower （w)	75	135	160	215	215	330	330	330	400	1100	2200	2200
Power Supply （V）	220/1φ	220/1φ	220/1φ	380/3φ	380/3φ	380/3φ	380/3φ	380/3φ	380/3φ	380/3φ	380/3φ	380/3φ
Compatible IMM Shot Weight （OZ）	1	3	5-8	8-15	10-20	20-25	20-30	30	30	30-50	40-50	Above 50
Base Size（cm)	15×15×φ5.5	15×15×φ5.5	19×19×φ5.5	15×15×φ5.5	22×22×φ9	22×22×φ9	26×26×φ9	26×26×φ9	35×35 ×φ10.5	35×35 ×φ10.5	35×35 ×φ10.5	35×35 ×φ10.5
Dimensions （cm)	64×44×76	76×50×104	87×54×121	94×60×131	101×70×141	110×74×170	118×84×176	142×100×183	148×106×202	158×116×240	177×118×254	247×142×300
Weight （kg)	26	34	45	56	68	100	129	160	170	280	460	680
