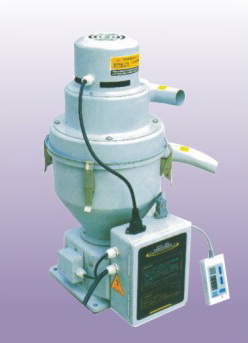

HAL-300G
Small and light, able to be mounted directly on dryer or material storage bin.
Controlled by microprocessor.
Alarms for material shortage.
Adopting high-speed brush motor with a small footprint and strong suction force, applicable for conveying virgin material.
Features cable controller for quick adjustment.
Able to be installed with bag filter (optional).
HAL-400G
Small and light, able to be mounted directly on dryer or material storage bin.
Controlled by microprocessor.
Alarms for motor overload and material shortage.
Adopting induction motor, with low noise and long service life.
Features cable controller for quick adjustment.
With pump reverse cleaning function.

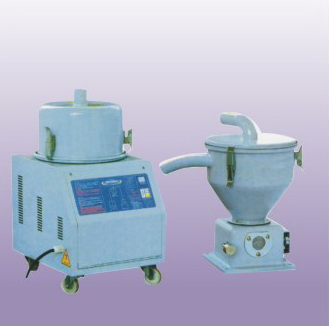

HAL-700G
Main unit and loader are separated for safety and long-distance conveying.
Filter is easy to clean.
Hopper is made of stainless steel.
Alarm material shortage.
Adopting high-speed brush motor with a small footprint and strong suction force, applicable for conveying virgin material.
Separated filter for easy cleaning.

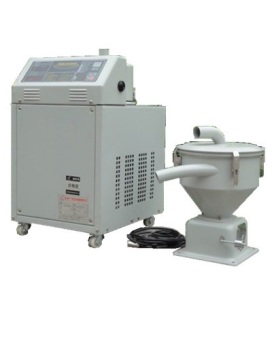

HAL-800G/800G2
Main unit and loader are separated for safety and long-distance conveying.
Separated filter is easy to clean.
Hopper is made of stainless steel.
Alarms for motor overload and material shortage.
Adopting induction motor with low noise and long lifespan.
With pump reverse cleaning function.
HAL-900G
One host machine can control up to 4 hoppers.（one vacuum hopper and multiple sensor hoppers）.
Suitable for integrating into system with drying and conveying, which simplifies system and improves efficiency.
Can be customized to control more than 4 hoppers with PLC touchscreen.
Depending on user’s application, optional combination of multiple vacuum hoppers and sensor hoppers can be customized
Separated filter and dust collecting bin for easy cleaning and maintenance
Indicator light shows the working status and errors.
High Power Loader
Designed for loading material of large quantity.
Equipped with high power motor with large-sized hopper and hose.
Controlled by microprocessor.
Alarms for motor overload and material shortage.
CE standard certificated.
Specification
Model | HAL-300G | HAL-400G | HAL-700G | HAL-800G | HAL-800G2 | HAL-900G | |
Motor | Type | Carbon Brush | Induction | Carbon Brush | Induction | Induction | Induction |
Power | 1KW/1φ | 0.75KW/3φ | 1.2KW/1φ | 1.1KW/3φ | 2.2KW/3φ | 2.2KW/3φ | |
Capacity （kg/h) | 250 | 300 | 230 | 400 | 480 | 300+300 | |
Lift （m) | 3.5 | 4 | 3.5 | 4 | 5 | 5 | |
Static Wind Pressure （mm/H2O) | 1300 | 1400 | 1550 | 1800 | 2400 | 2400 | |
Hopper Volume （L） | 7.5 | 10 | 7.5 | 10 | 10 | 7.5+7.5 | |
Hose Diameter （mm) | Φ38 | Φ38 | Φ38 | Φ38 | Φ38 | Φ38 | |
Size (cm) | Host | / | / | 37×30×56 | 42×38×64 | 50×40×72 | 50×40×72 |
Hopper | 34×34×59 | 45×37×66 | 28×34×43 | 45×32×45 | 45×32×45 | 28×34×43 2 PCS | |
Weight （kg) | Host | / | / | 14 | 47 | 66 | 66 |
Hopper | 13 | 25 | 6 | 7 | 7 | 6 × 2 | |
Model | HAL-5HP | HAL-7.5HP | HAL-10HP | |
Motor(KW) | 4 | 5.5 | 7.5 | |
Capacity(kg/h) | 900 | 1200 | 1500 | |
Lift(m) | 6 | 6 | 6 | |
Static Wind Pressure(bar) | 0.31 | 0.41 | 0.44 | |
Hopper Volume(L) | 25 | 40 | 40 | |
Hose Diameter(mm) | φ51 | φ63 | φ63 | |
Standard Hose | φ51mm×10m | φ63mm×15m | φ63mm×15m | |
Dimensions L×W×H (cm) | Host | 55×45×123 | 65×52×145 | 65×52×145 |
Hopper | 44×44×64 | 44×44×81 | 44×44×81 | |
Weight （kg) | Host | 90 | 135 | 145 |
Hopper | 10 | 12 | 12 | |
