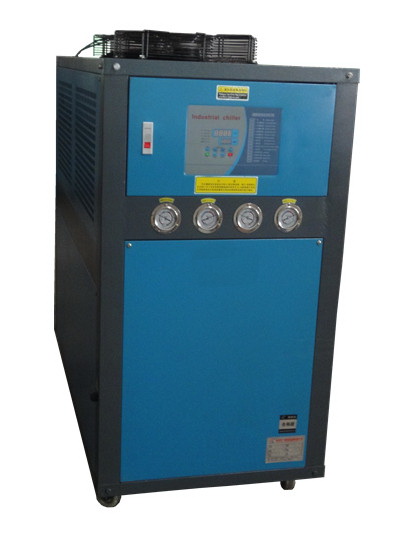

Industrial Chiller

Features of Air-cooled Chiller
1. No cooling tower required.
2. Especially applicable to poor water regions.
3. Equipped with high efficiency condenser, able to work in hot environment.
4. Not applicable to high dust condition.
Air-cooled condenser
Adopting finned radiator of reliable quality and high efficiency.
High quality machine parts and mature production technology ensure no leakage of refrigerant.
Especially applicable to water deficient regions and hard water regions.
Equipped with individual controlling system, built-in compressor dryer filter , expansion valve, hand valve interface for easy maintenance.
INQUIRY

Specification

Cooling Type			Air-cooled Chillers
Model			HC-2AC	HC-3AC	HC-5AC	HC-6AC	HC-8AC	HC-10AC	HC-12AC	HC-15AC	HC-20AC	HC-25AC	HC-30AC	HC-40AC		HC-50AC
Refrigerating Capacity (50HZ)		Btu/h	21560	28541	36427	48820	66095	70977	94636	121181	189272	228704	252363	378544		457408
		KW	6.38	8.38	10.67	14.3	19.36	20.79	27.72	36.96	55.44	66.99	74.9	110.88		133.98
		Kcal/h	5433	7188	9175	12296	16647	17876	23835	31780	47670	57601	63560	95340		115202
		USRT	1.8	2.5	3.0	4.0	5.5	6.0	7.9	10.5	15.8	19.0	21.0	31.0		38.0
Power Supply		1-PH 220V/50HZ		3-PH 380V-415V 50HZ
Compressor Power		KW	1.82	2.5	3.58	4.56	5.85	7.38	8.2	11.84	7.38×2	8.85×2	11.84×2		15.02×2	18.8×2
Condenser		Capillary Tube/Thermostatic Expansion Valve
Refrigerant		R22
Cooling Method		Copper Finned Radiator+Low Noise Axial Fans
Fan Power		KW	0.25	0.35	0.2×2	0.25×2	0.35×2	0.45×2	0.5×2	0.8×2	0.5×4	0.5×4	0.45×6		0.5×8	0.8×8
Evaporator	Type	Water Tank/Shell and Tube
Evaporator	Tank Capacity	L	50	50	55	75	145	210	210	360	510	510	510		600	780
Chiller Water Flow		m³/h	1.04	1.44	1.84	2.46	3.33	3.58	4.77	6.37	9.55	11.54	12.73		19.10	23.08
Fitting Diameter		DN	25	25	25	32	32	32	40	40	50	65	65		80	80
Pump Power		HP	0.5	0.5	0.5	0.5	1	1	1	1.5	2	3	3		5	5
Net Weight		KG	102	150	176	260	320	380	410	710	830	1200	1400		1520	1620
Size	L	mm	800	1000	1200	1058	1380	1500	1680	1800	1980	2450	2238		2998	3250
	W	mm	520	600	580	660	800	900	810	995	1050	1150	1155		1158	1600
	H	mm	1150	1180	1180	1280	1400	1500	1400	1650	1935	1985	1980		1988	2250
